Grid-Layout

Das Layout mit dem “pack”-Mechanismus ist nicht immer leicht zu verstehen. Deshalb gibt es seit Jahren einen Nachfolger: das Grid-Layout.

Beachte:
Einmal Grid-Layout immer Grid-Layout!

Structure

The structure of a grid-dialog are different than a pack-dialog:

import tkinter

class MyApp():

def __init__(self, root):
- root.config(bg="yellow")
- self.setGUI()

def setGUI(self):
- # create your ui-elements
- pass

root = tkinter.Tk()
root.title("Mein Fenster")
root.geometry("300x300")
app = MyApp(root)
root.mainloop()

New:
The reference of the main-dialog „root“ are given to the class within a parameter.
If you create an ui-element, you have to use "root" not "self" as prefix.
For a call for an implemented actions of python, you use "root":
- self.bnOk["command"] = root.quit
For an own action method, you use "self":
- self.bnAction["command"] = self.onAction

def onAction(self):
- self.var_name.set( self.var_name.get()[::-1] )
- messagebox.showinfo( "Hello Python", "Hello World") # from tkinter import messagebox

Instead of a call of „pack“, you must call ?.grid(…)
- .grid(row=0, column=0, columnspan=3, padx="10",pady="10")
- row
- col
- columnspan
- rowspan

The number of columns and rows are calculated.

If you want to fill the rows or columns, you need:
- root.rowconfigure(rownr, weight=1)
- root.columnconfigure(colnr, weight=1)
- don't forget sticky="NSEW", without sticky, the cell are expanded, but not the ui-element
- self.inputui.grid(row=0, column=1,sticky="NSEW",padx="10",pady="10")

1. Beispiel

import tkinter
from tkinter import messagebox

class MyApp():

  def __init__(self, root):
    root.config(bg="yellow")
    self.setGUI()

  def setGUI(self):
    n=5
    for rownr in range(0,n,1):
      for colnr in range(0,n,1):
        bn = tkinter.Button(root)
        bn["text"] = str(rownr)+' / '+str(colnr)
        #bn.grid(row=0, column=0, padx="10",pady="10")
        bn.grid(row=rownr, column=colnr, padx="10",pady="10")
        bn.config(foreground = "blue" )
        bn.config(background = "red") #"#FF0000"

root = tkinter.Tk()
root.title("Mein Fenster")
root.geometry("300x300")
app = MyApp(root)
root.mainloop()

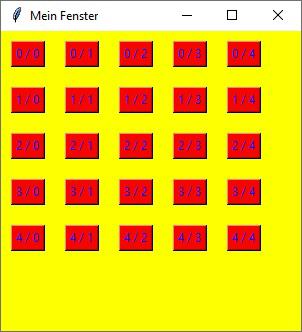

Ergebnis des 1. Beispiels

1. Beispiel (new version)

import tkinter
from tkinter import messagebox

class MyApp():

  def __init__(self, root):
    root.config(bg="yellow")
    self.setGUI()

  def setGUI(self):
    n=5
    for i in range(0,n,1):
      root.rowconfigure(i, weight=1)  # setzt die 1. Spalte auf fill
      root.columnconfigure(i, weight=1)  # 1. editor fill


    for rownr in range(0,n,1):
      for colnr in range(0,n,1):
        bn = tkinter.Button(root)
        bn["text"] = str(rownr)+' / '+str(colnr)
        bn.grid(row=rownr, column=colnr,sticky="NSEW", padx="10",pady="10")
        bn.config(foreground = "blue" )
        bn.config(background = "red") #"#FF0000"


root = tkinter.Tk()
root.title("Mein Fenster")
root.geometry("300x300")
app = MyApp(root)
root.mainloop()

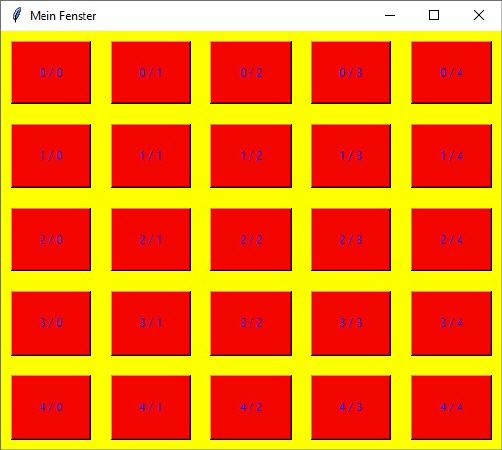

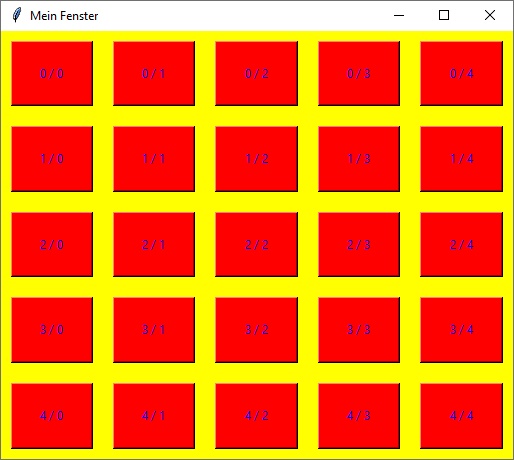

Ergebnis der 1. Beispiels nach der Modifikation

1. Beispiel (new version, different columnweight)

import tkinter
from tkinter import messagebox

class MyApp():

  def __init__(self, root):
    root.config(bg="yellow")
    self.setGUI()

  def setGUI(self):
    n=5
    for i in range(0,n,1):
      root.rowconfigure(i, weight=1)  # setzt die 1. Spalte auf fill
      root.columnconfigure(i, weight=i+1)  # 1. editor fill


    for rownr in range(0,n,1):
      for colnr in range(0,n,1):
        bn = tkinter.Button(root)
        bn["text"] = str(rownr)+' / '+str(colnr)
        bn.grid(row=rownr, column=colnr,sticky="NSEW", padx="10",pady="10")
        bn.config(foreground = "blue" )
        bn.config(background = "red") #"#FF0000"


root = tkinter.Tk()
root.title("Mein Fenster")
root.geometry("300x300")
app = MyApp(root)
root.mainloop()

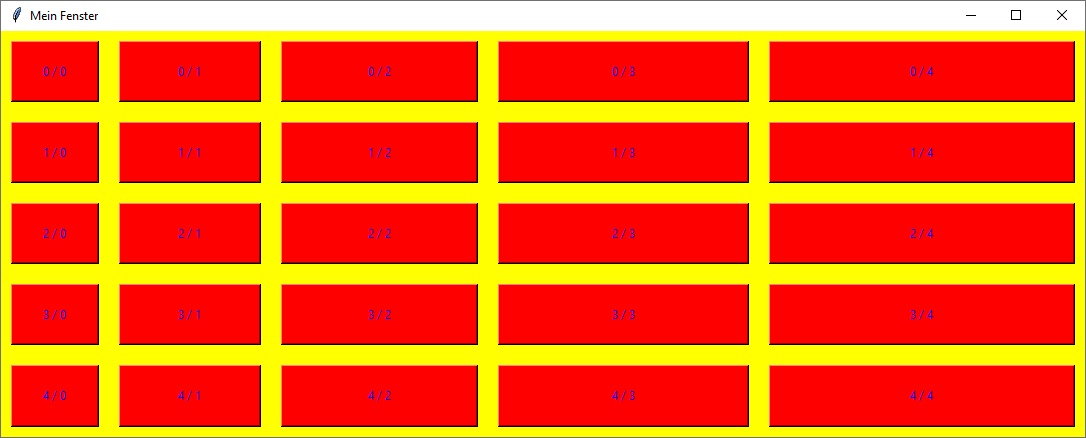

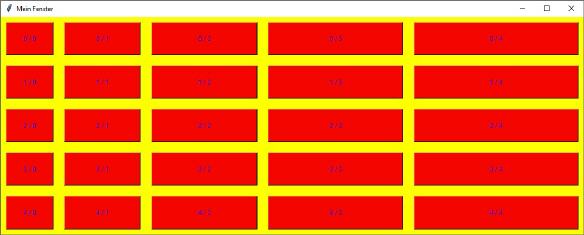

Ergebnis der 1. Beispiels nach der Modifikation

1. Beispiel (new version, different columnweight)

import tkinter
from tkinter import messagebox

class MyApp():

  def __init__(self, root):
    root.config(bg="yellow")
    self.setGUI()

  def setGUI(self):
    n=5
    for i in range(0,n,1):
      root.rowconfigure(i, weight=i+1)  # setzt die 1. Spalte auf fill
      root.columnconfigure(i, weight=1)  # 1. editor fill


    for rownr in range(0,n,1):
      for colnr in range(0,n,1):
        bn = tkinter.Button(root)
        bn["text"] = str(rownr)+' / '+str(colnr)
        bn.grid(row=rownr, column=colnr,sticky="NSEW", padx="10",pady="10")
        bn.config(foreground = "blue" )
        bn.config(background = "red") #"#FF0000"


root = tkinter.Tk()
root.title("Mein Fenster")
root.geometry("300x300")
app = MyApp(root)
root.mainloop()

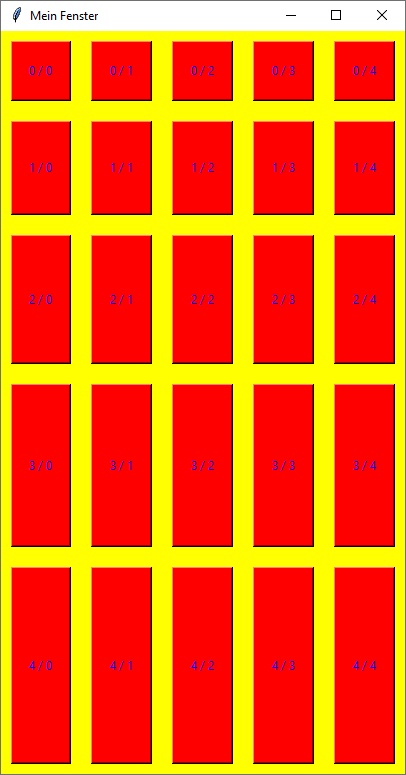

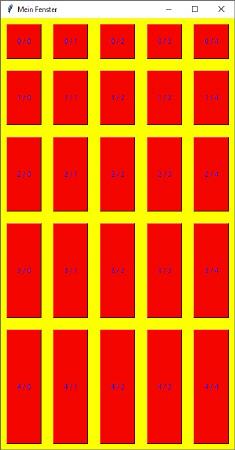

Ergebnis der 1. Beispiels nach der Modifikation

2. Beispiel

import tkinter
from tkinter import messagebox

class MyApp():

  def __init__(self, root):
    root.config(bg="yellow")
    self.setGUI()

  def setGUI(self):

    self.label1 = tkinter.Label(root)
    self.label1["text"] = "Eingabe"
    self.label1.config(foreground = "blue" )
    self.label1.config(background = "red") #"#FF0000"
    self.label1.grid(row=0, column=0, padx="10",pady="10")
    #self.label1.grid(row=0, columnspan=0, padx="10",pady="10")



    self.inputui = tkinter.Entry(root, background="blue", foreground="yellow", relief=tkinter.SUNKEN)
    self.inputui.grid(row=0, column=1,sticky="ew",padx="10",pady="10")

    self.var_name = tkinter.StringVar()
    self.var_name.set("Ihr Name...")
    self.inputui["textvariable"] = self.var_name

# ------------------------------------------

    self.bnRev = tkinter.Button(root)
    self.bnRev["text"] = "Umdrehen"
    self.bnRev["command"] = self.onReverse
    self.bnRev.grid(row=1, column=0, padx="10",pady="10")

    self.bnOk = tkinter.Button(root)
    self.bnOk["text"] = "Ok"
    self.bnOk["command"] = root.quit
    self.bnOk.grid(row=1, column=1, padx="10",pady="10")

# ------------------------------------------

  def onReverse(self):
    self.var_name.set( self.var_name.get()[::-1] )
    messagebox.showinfo( "Hello Python", "Hello World")



root = tkinter.Tk()
root.title("Mein Fenster")
root.geometry("250x150")
app = MyApp(root)
root.mainloop()

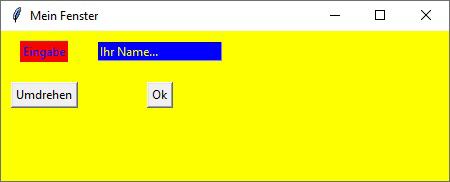

Ergebnis des 2. Beispiels

Ergebnis des 2. Beispiels

Das Textfeld "wandert" nicht mit, siehe 3. Beispiel

3. Beispiel

import tkinter from tkinter import messagebox class MyApp(): def __init__(self, root): root.config(bg="yellow") self.setGUI() def setGUI(self): root.columnconfigure(1, weight=1) # setzt die 1. Spalte auf fill self.label1 = tkinter.Label(root) self.label1["text"] = "Eingabe" self.label1.config(foreground = "blue" ) self.label1.config(background = "red") self.label1.grid(row=0, column=0, padx="10",pady="10") self.inputui = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui.grid(row=0, column=1,sticky="NSEW",padx="10",pady="10") self.var_name = tkinter.StringVar() self.var_name.set("Ihr Name...") self.inputui["textvariable"] = self.var_name # ------------------------------------------ buttonframe = tkinter.Frame(root) buttonframe.config(background = "blue") #"#FF0000" buttonframe.grid(row=1, column=0, columnspan=2, padx="10",pady="10") self.bnAction = tkinter.Button(buttonframe) self.bnAction["text"] = "Umdrehen" self.bnAction["command"] = self.onReverse self.bnAction.grid(row=0, column=0, padx="10",pady="10") self.bnOk = tkinter.Button(buttonframe) self.bnOk["text"] = "Ok" self.bnOk["command"] = root.quit self.bnOk.grid(row=0, column=1, padx="10",pady="10") # ------------------------------------------ def onReverse(self): self.var_name.set( self.var_name.get()[::-1] ) messagebox.showinfo( "Hello Python", "Hello World") root = tkinter.Tk() root.title("Mein Fenster") root.geometry("250x150") app = MyApp(root) root.mainloop()

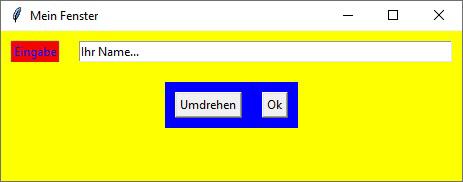

Ergebnis des 3. Beispiels

Ergebnis des 3. Beispiels

4. Beispiel

import tkinter from tkinter import messagebox class MyApp(): def __init__(self, root): root.config(bg="yellow") self.setGUI() def setGUI(self): root.columnconfigure(1, weight=3) # setzt die 1. Spalte auf fill root.columnconfigure(2, weight=1) # setzt die 2. Spalte auf fill self.label1 = tkinter.Label(root) self.label1["text"] = "Eingabe" self.label1.config(foreground = "blue" ) self.label1.config(background = "red") self.label1.grid(row=0, column=0, sticky="W", padx="10",pady="10") self.inputui1 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui1.grid(row=0, column=1,sticky="NSEW",padx="10",pady="10") self.var_name1 = tkinter.StringVar() self.var_name1.set("Ihr Nachname...") self.inputui1["textvariable"] = self.var_name1 self.inputui2 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui2.grid(row=0, column=2,sticky="NSEW",padx="10",pady="10") self.var_name2 = tkinter.StringVar() self.var_name2.set("Ihr Vorname...") self.inputui2["textvariable"] = self.var_name2 #------------------------------------------- self.label3 = tkinter.Label(root) self.label3["text"] = "Straße" self.label3.config(foreground = "blue" ) self.label3.config(background = "red") self.label3.grid(row=1, column=0,sticky="W", padx="10",pady="10") self.inputui3 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui3.grid(row=1, column=1, columnspan=2,sticky="NSEW", padx="10",pady="10") self.var_name3 = tkinter.StringVar() self.var_name3.set("Strasse...") self.inputui3["textvariable"] = self.var_name3 # ------------------------------------------ buttonframe = tkinter.Frame(root) buttonframe.config(background = "blue") #"#FF0000" buttonframe.grid(row=2, column=0, columnspan=3, padx="10",pady="10") self.bnAction = tkinter.Button(buttonframe) self.bnAction["text"] = "Umdrehen" self.bnAction["command"] = self.onReverse self.bnAction.grid(row=0, column=0, padx="10",pady="10") self.bnOk = tkinter.Button(buttonframe) self.bnOk["text"] = "Ok" self.bnOk["command"] = root.quit self.bnOk.grid(row=0, column=1, padx="10",pady="10") # ------------------------------------------ def onReverse(self): self.var_name1.set( self.var_name1.get()[::-1] ) #messagebox.showinfo( "Hello Python", "Hello World") root = tkinter.Tk() root.title("Mein Fenster") root.geometry("350x150") app = MyApp(root) root.mainloop()

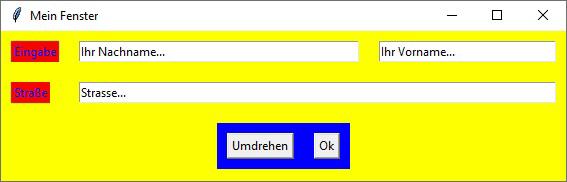

Ergebnis des 4. Beispiels

5. Beispiel

import tkinter from tkinter import messagebox class MyApp(): def __init__(self, root): root.config(bg="yellow") self.setGUI() def setGUI(self): root.columnconfigure(1, weight=3) # setzt die 1. Spalte auf fill root.columnconfigure(2, weight=1) # setzt die 1. Spalte auf fill root.rowconfigure(2, weight=1) # editor fill self.label1 = tkinter.Label(root) self.label1["text"] = "Eingabe" self.label1.config(foreground = "blue" ) self.label1.config(background = "red") self.label1.grid(row=0, column=0, sticky="W", padx="10",pady="10") self.inputui1 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui1.grid(row=0, column=1,sticky="NSEW",padx="10",pady="10") self.var_name1 = tkinter.StringVar() self.var_name1.set("Ihr Nachname...") self.inputui1["textvariable"] = self.var_name1 self.inputui2 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui2.grid(row=0, column=2, columnspan=2,sticky="NSEW",padx="10",pady="10") self.var_name2 = tkinter.StringVar() self.var_name2.set("Ihr Vorname...") self.inputui2["textvariable"] = self.var_name2 #------------------------------------------- self.label3 = tkinter.Label(root) self.label3["text"] = "Straße" self.label3.config(foreground = "blue" ) self.label3.config(background = "red") self.label3.grid(row=1, column=0, sticky="W", padx="10",pady="10") self.inputui3 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui3.grid(row=1, column=1, columnspan=3, sticky="NSEW",padx="10",pady="10") self.var_name3 = tkinter.StringVar() self.var_name3.set("Strasse...") self.inputui3["textvariable"] = self.var_name3 # ------------------------------------------- self.editor = tkinter.Text(root) self.editor.config(wrap="none") # wrap="word" word char self.editor.grid(row=2, column=0,columnspan=3, sticky="NSEW", padx="0",pady="0") sbx = tkinter.Scrollbar(root, orient="horizontal") sbx.grid(row=3, column=0,columnspan=4, sticky="NSEW",pady="0") sby = tkinter.Scrollbar(root) sby.grid(row=2, column=3,columnspan=1, sticky="NSEW",pady="0") self.editor["xscrollcommand"] = sbx.set sbx["command"] = self.editor.xview self.editor["yscrollcommand"] = sby.set sby["command"] = self.editor.yview # ------------------------------------------ buttonframe = tkinter.Frame(root) buttonframe.config(background = "blue") #"#FF0000" buttonframe.grid(row=4, column=0, columnspan=3, padx="10",pady="10") self.bnAction = tkinter.Button(buttonframe) self.bnAction["text"] = "Umdrehen" self.bnAction["command"] = self.onReverse self.bnAction.grid(row=0, column=0, padx="10",pady="10") self.bnOk = tkinter.Button(buttonframe) self.bnOk["text"] = "Ok" self.bnOk["command"] = root.quit self.bnOk.grid(row=0, column=1, padx="10",pady="10") # ------------------------------------------ def onReverse(self): self.var_name1.set( self.var_name1.get()[::-1] ) #messagebox.showinfo( "Hello Python", "Hello World") root = tkinter.Tk() root.title("Mein Fenster") root.geometry("550x400") app = MyApp(root) root.mainloop()

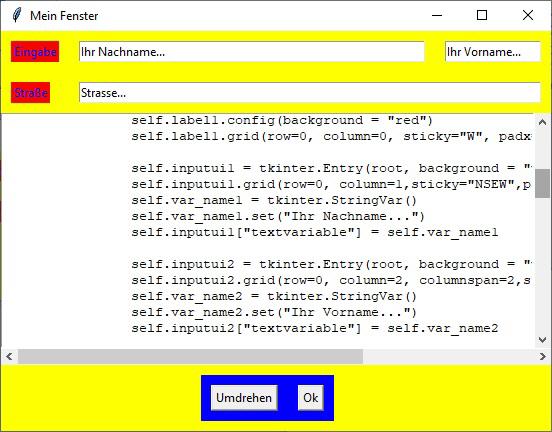

Ergebnis des 5. Beispiels

6. Beispiel

import tkinter from tkinter import messagebox #https://www.tutorialspoint.com/python/python_gui_programming.htm class MyApp(): def __init__(self, root): root.config(bg="yellow") self.setGUI() def setGUI(self): root.columnconfigure(1, weight=3) # setzt die 1. Spalte auf fill root.columnconfigure(2, weight=1) # setzt die 1. Spalte auf fill root.rowconfigure(2, weight=1) # 1. editor fill root.rowconfigure(4, weight=10) # 2. editor fill self.label1 = tkinter.Label(root) self.label1["text"] = "Eingabe" self.label1.config(foreground = "blue" ) self.label1.config(background = "red") self.label1.grid(row=0, column=0, sticky="W", padx="10",pady="10") self.inputui1 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui1.grid(row=0, column=1,sticky="NSEW",padx="10",pady="10") self.var_name1 = tkinter.StringVar() self.var_name1.set("Ihr Nachname...") self.inputui1["textvariable"] = self.var_name1 self.inputui2 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui2.grid(row=0, column=2, columnspan=2,sticky="NSEW",padx="10",pady="10") self.var_name2 = tkinter.StringVar() self.var_name2.set("Ihr Vorname...") self.inputui2["textvariable"] = self.var_name2 #------------------------------------------- self.label3 = tkinter.Label(root) self.label3["text"] = "Straße" self.label3.config(foreground = "blue" ) self.label3.config(background = "red") self.label3.grid(row=1, column=0, sticky="W", padx="10",pady="10") self.inputui3 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui3.grid(row=1, column=1, columnspan=3, sticky="NSEW",padx="10",pady="10") self.var_name3 = tkinter.StringVar() self.var_name3.set("Strasse...") self.inputui3["textvariable"] = self.var_name3 # ------------------------------------------- self.editor1 = tkinter.Text(root) self.editor1.config(wrap="none") # wrap="word" word char self.editor1.grid(row=2, column=0,columnspan=3, sticky="NSEW", padx="0",pady="0") sbx1 = tkinter.Scrollbar(root, orient="horizontal") sbx1.grid(row=3, column=0,columnspan=4, sticky="NSEW",padx="20", pady="0") sby1 = tkinter.Scrollbar(root) sby1.grid(row=2, column=3,columnspan=1, sticky="NSEW",pady="0") self.editor1["xscrollcommand"] = sbx1.set sbx1["command"] = self.editor1.xview self.editor1["yscrollcommand"] = sby1.set sby1["command"] = self.editor1.yview # ------------------------------------------- self.editor2 = tkinter.Text(root) self.editor2.config(wrap="none") # wrap="word" word char self.editor2.grid(row=4, column=0,columnspan=3, sticky="NSEW", padx="0",pady="0") sbx2 = tkinter.Scrollbar(root, orient="horizontal") sbx2.grid(row=5, column=0,columnspan=4, sticky="NSEW", padx="20",pady="0") sby2 = tkinter.Scrollbar(root) sby2.grid(row=4, column=3,columnspan=1, sticky="NSEW",pady="0") self.editor2["xscrollcommand"] = sbx2.set sbx2["command"] = self.editor2.xview self.editor2["yscrollcommand"] = sby2.set sby2["command"] = self.editor2.yview # ------------------------------------------ buttonframe = tkinter.Frame(root) buttonframe.config(background = "blue") #"#FF0000" buttonframe.grid(row=6, column=0, columnspan=3, padx="10",pady="10") self.bnAction = tkinter.Button(buttonframe) self.bnAction["text"] = "Umdrehen" self.bnAction["command"] = self.onReverse self.bnAction.grid(row=0, column=0, padx="10",pady="10") self.bnOk = tkinter.Button(buttonframe) self.bnOk["text"] = "Ok" self.bnOk["command"] = root.quit self.bnOk.grid(row=0, column=1, padx="10",pady="10") # ------------------------------------------ def onReverse(self): self.var_name1.set( self.var_name1.get()[::-1] ) #messagebox.showinfo( "Hello Python", "Hello World") root = tkinter.Tk() root.title("Mein Fenster") root.geometry("550x700") app = MyApp(root) root.mainloop()

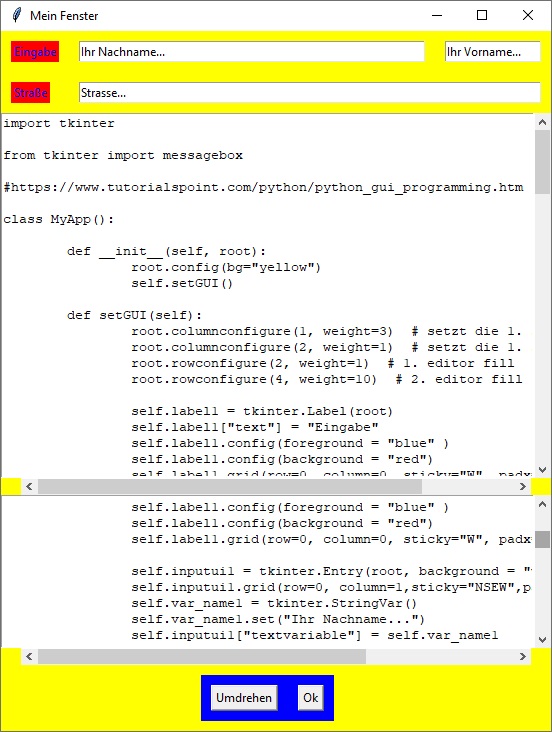

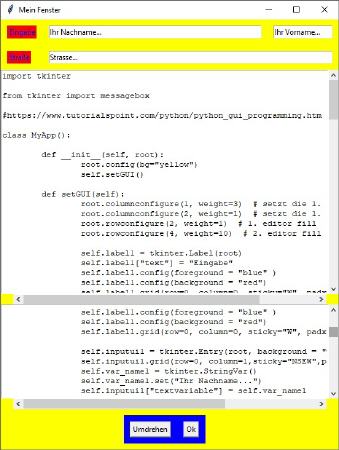

Ergebnis des 6. Beispiels

7. Beispiel

import tkinter from tkinter import messagebox #https://www.tutorialspoint.com/python/python_gui_programming.htm class MyApp(): def __init__(self, root): root.config(bg="yellow") self.setGUI() def setGUI(self): # Columns: auto weight=3 weight=1 auto weight=1 auto # editor root.columnconfigure(1, weight=3) # setzt die 1. Spalte auf fill root.columnconfigure(2, weight=1) # setzt die 1. Spalte auf fill root.rowconfigure(2, weight=1) # 1. editor fill self.label1 = tkinter.Label(root) self.label1["text"] = "Eingabe" self.label1.config(foreground = "blue" ) self.label1.config(background = "red") self.label1.grid(row=0, column=0, sticky="W", padx="10",pady="10") self.inputui1 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui1.grid(row=0, column=1,sticky="NSEW",padx="10",pady="10") self.var_name1 = tkinter.StringVar() self.var_name1.set("Ihr Nachname...") self.inputui1["textvariable"] = self.var_name1 self.inputui2 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui2.grid(row=0, column=2, columnspan=2,sticky="NSEW",padx="10",pady="10") self.var_name2 = tkinter.StringVar() self.var_name2.set("Ihr Vorname...") self.inputui2["textvariable"] = self.var_name2 #------------------------------------------- self.label3 = tkinter.Label(root) self.label3["text"] = "Straße" self.label3.config(foreground = "blue" ) self.label3.config(background = "red") self.label3.grid(row=1, column=0, sticky="W", padx="10",pady="10") self.inputui3 = tkinter.Entry(root, background = "white", relief=tkinter.SUNKEN) self.inputui3.grid(row=1, column=1, columnspan=3, sticky="NSEW",padx="10",pady="10") self.var_name3 = tkinter.StringVar() self.var_name3.set("Strasse...") self.inputui3["textvariable"] = self.var_name3 # ------------------------------------------- editorframe = tkinter.Frame(root) editorframe.config(background = "#00FF44") #"#FF0000" editorframe.grid(row=2, column=0, columnspan=3,sticky="NSEW", padx="10",pady="10") editorframe.columnconfigure(0, weight=1) # setzt die 1. Spalte auf fill editorframe.columnconfigure(2, weight=1) # setzt die 1. Spalte auf fill editorframe.rowconfigure(0, weight=1) # 1. editor fill self.editor1 = tkinter.Text(editorframe) self.editor1.config(wrap="none") # wrap="word" word char self.editor1.grid(row=0, column=0, sticky="NSEW", padx="0",pady="0") sby1 = tkinter.Scrollbar(editorframe) sby1.grid(row=0, column=1, sticky="NSEW",pady="0") sbx1 = tkinter.Scrollbar(editorframe, orient="horizontal") sbx1.grid(row=1, column=0, columnspan=2, sticky="NSEW",padx="20", pady="0") self.editor1["xscrollcommand"] = sbx1.set sbx1["command"] = self.editor1.xview self.editor1["yscrollcommand"] = sby1.set sby1["command"] = self.editor1.yview # ------------------------------------------- self.editor2 = tkinter.Text(editorframe) self.editor2.config(wrap="none") # wrap="word" word char self.editor2.grid(row=0, column=2, sticky="NSEW", padx="0",pady="0") sby2 = tkinter.Scrollbar(editorframe) sby2.grid(row=0, column=3,columnspan=1, sticky="NSEW",pady="0") sbx2 = tkinter.Scrollbar(editorframe, orient="horizontal") sbx2.grid(row=1, column=2,columnspan=2, sticky="NSEW",padx="20", pady="0") self.editor2["xscrollcommand"] = sbx2.set sbx2["command"] = self.editor2.xview self.editor1["yscrollcommand"] = sby2.set sby2["command"] = self.editor2.yview # ------------------------------------------ buttonframe = tkinter.Frame(root) buttonframe.config(background = "blue") #"#FF0000" buttonframe.grid(row=6, column=0, columnspan=3, padx="10",pady="10") self.bnAction = tkinter.Button(buttonframe) self.bnAction["text"] = "Umdrehen" self.bnAction["command"] = self.onReverse self.bnAction.grid(row=0, column=0, padx="10",pady="10") self.bnOk = tkinter.Button(buttonframe) self.bnOk["text"] = "Ok" self.bnOk["command"] = root.quit self.bnOk.grid(row=0, column=1, padx="10",pady="10") # ------------------------------------------ def onReverse(self): self.var_name1.set( self.var_name1.get()[::-1] ) #messagebox.showinfo( "Hello Python", "Hello World") root = tkinter.Tk() root.title("Mein Fenster") root.geometry("850x400") app = MyApp(root) root.mainloop()

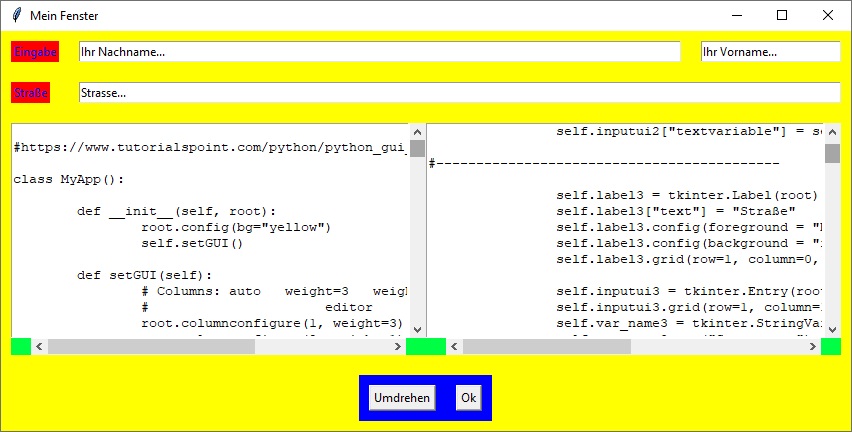

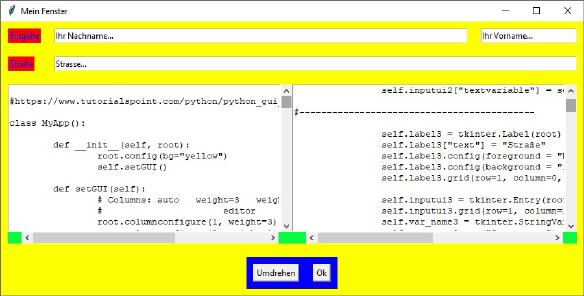

Ergebnis des 7. Beispiels
